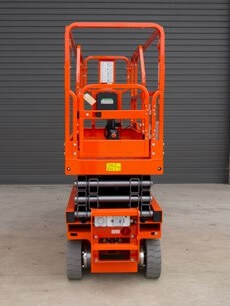

8.0m Electric Scissor Lift - Image 2

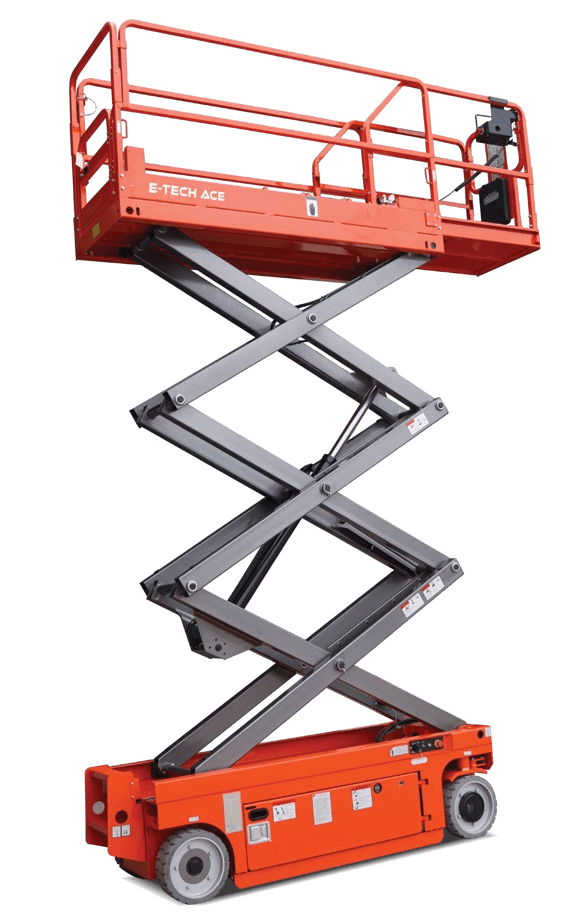

8.0m Electric Scissor Lift - Image 3

8.0m Electric Scissor Lift

Categories: , Tag:

Request for a Quote

Please add our email brendan@accessspecs.co.nz to your contacts list, so it will prevent our emails going to your SPAM folder.
Agreed(Required)
This field is for validation purposes and should be left unchanged.

Download PDF

Description

AC Powered Scissor Lift

The new E-TECH ACE range of electric scissor lifts from Dingli cater to customers looking for a more environmentally friendly lifting solution. The new range features a fully sealed AC driving and lifting system, replacing traditional DC systems whilst providing advantages including:

• Maintenance free

• Increased IP67 protection against dust and liquids

• Increased efficiency

• Increased safety

All units are manufacturer guaranteed for two years

S0608-ACE Scissor Lift
Size Metric
Max. Working Height 8 m
Max. Platform Height 6 m
Overall Length 2.48 m
Overall Width 0.83 m
Overall Height(Rails Up) 2.23 m
Overall Height(Rails Down) 1.87 m
Platform Size(Length×Width) 2.27 x 0.81 m
Platform Extension Size 0.9 m
Ground Clearance(Stowed/Raised) 0.10 m / 0.017 m
Wheelbase 1.87 m
Turning Radius 0 m / 2.1 m
Tyres ø 381 x 127 m
S0608-ACE Scissor Lift
Performance Metric
SWL 380 kg
SWL On Extension 113 kg
Max. Occupants (Indoor/Outdoor) 2
Gradeability 25 %
Travel Speed(Stowed) 5 km/h
Travel Speed(Raised) 0.8 km/h
Max. Working Slope 1.5 ° / 3°
Up/Down Speed 25 / 42 sec
S0608-ACE Scissor Lift
Weight & Power Metric
Lead Acid Battery Type 2,160 kg
Lithium Battery Type 2,100 kg
Battery 24 V / 170Ah
Charger 24 V / 30 A
Driving Motor 2 x 24 VAC / 0.87 kW
Lifting Motor 24 VAC / 3.5 kW
